A-A-51488B
|
Arch |
Trough |
||
|
Size |
Width |
Length |
Depth Range |
|
Small |
2-1/4 ± 1/8 |
1-5/8 ± 1/4 |
1/8-15/32 |
|
Medium |
2-1/2 ± 1/4 |
2 ± 1/4 |
5/32-9/16 |
|
Large |
2-3/4 ± 1/8 -1/4 |
|
|
1/ All dimensions are in inches.
Width is taken at widest part.
Length is taken at midline.
Measurements are taken with optional liner removed.

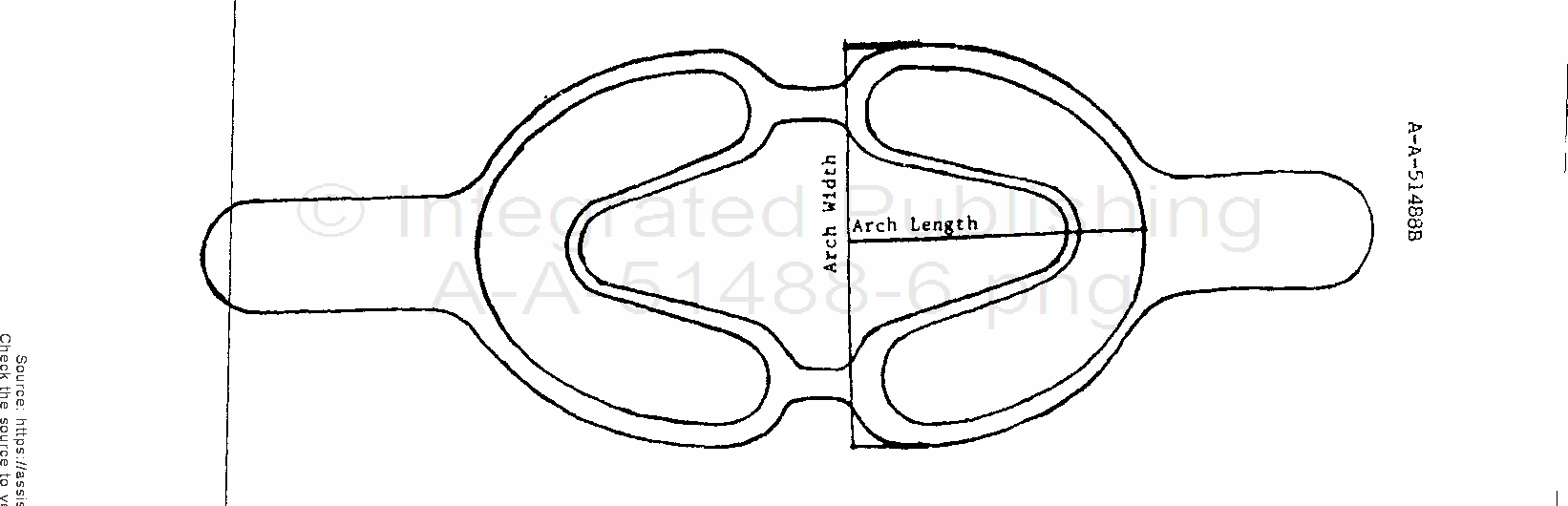

FIGURE I. FLUORIDE APPLICATION TRAY, DENTAL
The fluoride application tray is typical in style and design and is not intended to restrict or preclude the purchase of fluoride application trays which are otherwise in accordance with the requirements of this document.
